Pallet Fork Extensions | Haugen
HGN-MFE
limited quantity available
Free shipping
-10%Sale ends April 30, 2026
DETAILS

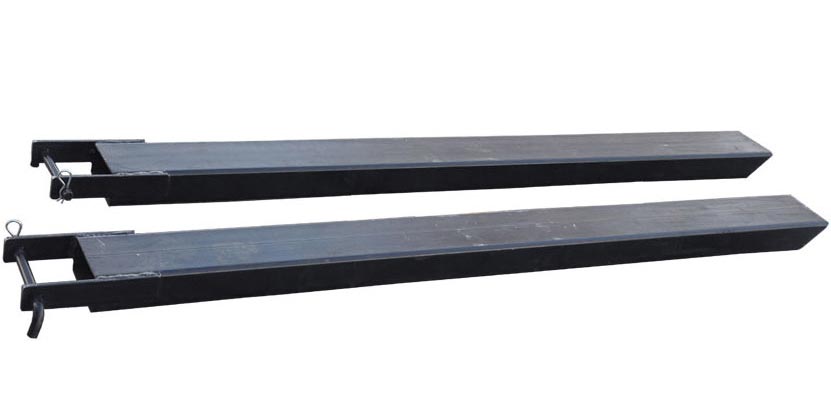

Extend the length of your forks with the fork extensions. See minium host fork lengths before ordering. Capacity rating is per pair. Engineered ceritfied.
| 72" FORK EXTENSIONS MINIMUM HOST FORK TINE LENGTH REQUIRED IS 48" - CAPACITY RATING IS PER PAIR |
|||||
|---|---|---|---|---|---|
| MODEL | EXTENSION LENGTH |
EXTENSION DIMENSION |
FIT TINES UP TO |
WEIGHT | CAPACITY |
| 72" - Capacity 3380 lbs | 6' | 2 1/2" x 5" | 2" x 4" | 113 lbs | 3380 lbs |
| 72" - Capacity 4100 lbs | 6' | 3" x 6" | 2 1/2" x 5" | 136 lbs | 4100 lbs |
| 72" - Capacity 4350 lbs | 6' | 3" x 7" | 2 1/2" x 6" | 151 lbs | 4350 lbs |
| 90" FORK EXTENSIONS MINIMUM HOST FORK TINE LENGTH REQUIRED IS 60" - CAPACITY RATING IS PER PAIR |
|||||
|---|---|---|---|---|---|
| MODEL | EXTENSION LENGTH |
EXTENSION DIMENSION |
FIT TINES UP TO |
WEIGHT | CAPACITY |
| 90" - Capacity 2900 lbs | 7’6” | 2 1/2" x 5" | 2" x 4" | 139 lbs | 2900 lbs |
| 90" - Capacity 3520 lbs | 7’6” | 3" x 6" | 2 1/2" x 5" | 168 lbs | 3520 lbs |
| 90" - Capacity 3980 lbs | 7’6” | 3" x 7" | 2 1/2" x 6" | 187 lbs | 3980 lbs |
| 96" FORK EXTENSIONS MINIMUM HOST FORK TINE LENGTH REQUIRED IS 64" - CAPACITY RATING IS PER PAIR |
|||||
|---|---|---|---|---|---|
| MODEL | EXTENSION LENGTH |
EXTENSION DIMENSION |
FIT TINES UP TO |
WEIGHT | CAPACITY |
| 96" - Capacity 2850 lbs | 8' | 2 1/2" x 5" | 2" x 4" | 148 lbs | 2850 lbs |
| 96" - Capacity 3450 lbs | 8' | 3" x 6" | 2 1/2" x 5" | 179 lbs | 3450 lbs |
| 96" - Capacity 3600 lbs | 8' | 3" x 7" | 2 1/2" x 6 " | 199 lbs | 3600 lbs |
| 96" - Capacity 10150 lbs | 8' | 4" x 8" | 3" x 7" | 440 lbs | 10150 lbs |
| 108" FORK EXTENSIONS MINIMUM HOST FORK TINE LENGTH REQUIRED IS 72" - CAPACITY RATING IS PER PAIR |
|||||
|---|---|---|---|---|---|
| MODEL | EXTENSION LENGTH |
EXTENSION DIMENSION |
FIT TINES UP TO |
WEIGHT | CAPACITY |
| 108" - Capacity 2550 lbs | 9' | 2 1/2" x 5" | 2" x 4" | 165 lbs | 2550 lbs |
| 108" - Capacity 3100 lbs | 9' | 3" x 6" | 2 1/2" x 5" | 200 lbs | 3100 lbs |
| 108" - Capacity 3450 lbs | 9' | 3" x 7" | 2 1/2" x 6 " | 223 lbs | 3450 lbs |
| 108" - Capacity 10400 lbs | 9' | 4" x 8" | 3" x 7" | 496 lbs | 10400 lbs |
features
- Full Tube Extension
- Pins onto your Fork Tines
- OSHA Regulations allow Fork Extensions to be 50% longer than the Fork Tine length
- Made in the USA
